TcCryo Stainless Steel Self Pressurized Liquid Nitrogen Cylinder Togo

  • FOB Price:Get Latest Price >
  • Min.Order:1 Set(s)
  • Production Capacity:6000 sets per month
  • Payment Terms:L/C , T/T , D/P , PayPal , D/A
  • Favorite
Henan Tianchi Cryogenic Machinery Equipment Manufacturing Co., Ltd.

Business Type:Manufacturer

Country/Region:China

Ddu Verified

HOT Rank

8/10

Product Information

  • Transport Package:Honeycomb Carton
  • Specification:YDZ-150
  • Trademark:TcCryo
  • Country of Origin:China
  • Material:stainless steel

Description

01 Product Definition

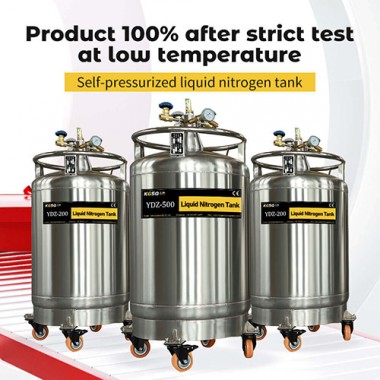

TcCryo YDZ-150 is a self-pressurized stainless steel liquid nitrogen supply tank designed for safe, controlled LN2 dispensing into cryogenic containers and equipment. As a standard configuration in the YDZ Series, which covers capacities from 15 L to 500 L with custom options up to 2,000 L, it features an internal self-pressurization system that generates pressure without an external pump. This enables continuous LN2 delivery through an integrated control structure with inlet/outlet valves and vent valves. Constructed from 304 stainless steel and equipped with dual safety valves, it is suitable for laboratory LN2 refilling, biobank supply systems, central LN2 distribution, and industrial cryogenic transfer where controlled pressure and stable flow are required.

02 Core Selling Points

1. Self-Pressurization Without External Equipment: Internal pressure generation eliminates manual pouring and external pumps, reducing operator handling and spill risk.

2. 304 Stainless Steel Construction: High-quality stainless steel body with vacuum insulation for low-temperature durability and reliable performance in continuous supply duty.

3. Dual Safety Valve Protection: Double safety automatic control valves and a safety valve opening pressure of 0.099 MPa help ensure safe, stable operation.

4. Stable Discharge and Flow Control: Equipped with a pressure stabilizer system and continuous pressurization/drainage design to maintain consistent LN2 output for routine refilling.

5. Mobility and Ergonomics: Heavy-duty swivel casters and specially designed ultra-low-temperature globe valves support safe, convenient movement and operation in laboratory aisles.

6. Scalable Capacity with Custom Options: Standard models cover 15–500 L for routine laboratory and biobank supply; larger configurations up to 2,000 L are available for high-volume or centralized distribution projects.

03 Key Specifications

04 Application Scenarios

Laboratory LN2 Refilling

Suitable for controlled refilling of YDS, YDD, and other cryogenic storage dewars in life-science laboratories, replacing manual pouring with pressure-driven discharge.



Biobank and Stem Cell Facility Supply

Supports centralized or point-of-use LN2 supply for biobanks, stem cell banks, and sample repositories requiring stable output and reduced manual intervention.



Centralized LN2 Distribution Systems

Used as a supply source for multiple storage tanks or automated filling systems, with optional monitoring and remote signal transmission for managed workflows.



Industrial and Specialized Cryogenic Transfer

Applicable in pharmaceutical, semiconductor, food processing, low-temperature chemical, aerospace, and other industrial settings requiring safe LN2 transfer.



Veterinary and Livestock Breeding Support

Provides reliable LN2 supply for field or station-based semen storage operations where controlled dispensing is needed.



05 Capacity Selection & Model Range

TcCryo YDZ Series standard models cover capacities from 15 L to 500 L, with discharge rates from ≥2 L/min to ≥12 L/min, allowing users to match tank size to LN2 consumption volume, refill frequency, required flow rate, and connection requirements. Custom configurations up to 2,000 L are available for projects requiring larger supply volume.



Compact supply models: 15–50 L, daily evaporation ≤7% to ≤2.2%, discharge ≥2 to ≥4 L/min; suitable for small laboratories and low-to-moderate refill demand.



Mid-range supply models: 75–100 L, daily evaporation ≤2.2% to ≤1.4%, discharge ≥5 to ≥6 L/min; suitable for routine laboratory LN2 distribution and multiple small dewars.



Large supply models: 150–200 L, daily evaporation ≤1.3% to ≤1.1%, discharge ≥8 L/min; suitable for higher-demand laboratory and biobank refilling.



High-capacity supply models: 230–300 L, daily evaporation ≤1.1%, discharge ≥10 L/min; suitable for centralized supply and larger facility workflows.



Maximum standard model: 500 L, daily evaporation ≤1.1%, discharge ≥12 L/min; suitable for high-volume laboratory and facility LN2 distribution.



Custom high-volume configurations: up to 2,000 L on request; suitable for industrial-scale LN2 distribution and centralized supply projects.



Capacity should be selected based on required discharge flow rate, daily LN2 consumption, refill frequency, working pressure, connection requirements, and whether monitoring or automatic filling is needed. All models support self-pressurization and continuous discharge without external pumps.

06 Manufacturing, Quality Control & OEM Support

All TcCryo liquid nitrogen containers are manufactured through a process including aerospace-grade aluminum inspection, precision cutting and forming, ultrasonic cleaning, precision welding, multi-layer insulation wrapping, electrostatic powder coating, high-vacuum processing, helium mass spectrometry leak detection, and final QC.



Every unit passes helium leak detection, vacuum performance, sealing, static evaporation rate, and appearance/structure inspection before delivery.



TcCryo supports custom logo, private label, model selection, packaging customization, matching accessories, documentation, and distributor product materials.



As a specialized manufacturer of cryogenic liquid nitrogen containers, TcCryo produces storage series, dry shipper series, and self-pressurized LN2 dispenser series for livestock breeding, life-science laboratories, biotech companies, and research institutions worldwide, providing standardized cryogenic tanks and flexible OEM and distributor cooperation solutions.

07 FAQ

Q1. What is the YDZ Series used for?

The YDZ Series is a self-pressurized stainless steel liquid nitrogen supply tank for controlled LN2 dispensing into cryogenic containers and equipment, including laboratory refilling, biobank supply, and centralized LN2 distribution.



Q2. How does self-pressurization work?

The tank uses an internal self-pressurization system to generate pressure without an external pump. This enables continuous LN2 delivery through an integrated control structure with inlet/outlet valves and vent valves.



Q3. What capacities are available?

Standard models cover 15 L to 500 L. Custom configurations up to 2,000 L are available on request for high-volume or centralized supply projects.



Q4. What is the standard working pressure?

Standard working pressure is approximately 0.05 MPa, with a maximum working pressure of approximately 0.09 MPa and a safety valve opening pressure of approximately 0.099 MPa.



Q5. What safety features are included?

YDZ models include dual safety valves and a safety valve opening pressure of approximately 0.099 MPa, supporting safe and stable operation during continuous supply duty.



Q6. Can the YDZ Series be integrated with monitoring or automatic filling systems?

Yes. Optional configurations include level display, pressure regulator, solenoid valve, automatic filling system, and digital signal remote transmission for integration into managed LN2 supply workflows.



Q7. What accessories are available?

Optional configurations include level display, pressure regulator, solenoid valve, automatic filling system, and digital remote transmission. Vertical models are standard; horizontal configurations are available.



Q8. Can TcCryo customize the YDZ Series for OEM or distributor projects?

Yes. TcCryo supports custom logo, private label, model selection, packaging customization, matching accessories, documentation, and distributor product materials, subject to project requirements and order quantity.


08 CTA

Need Help Choosing the Right LN2 Supply Tank?

Tell us your: Application + Required Discharge Rate + LN2 Consumption Volume + Working Pressure + Connection Requirements.

TcCryo can recommend a suitable YDZ configuration for your laboratory or facility LN2 supply.
