Tianchi nitrogen flask companies

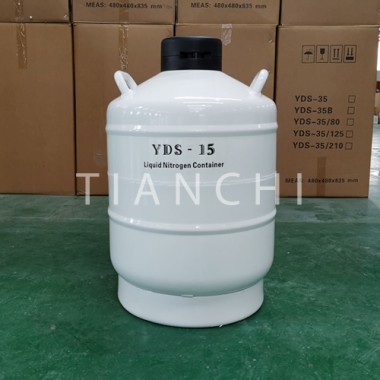

Tianchi liquid nitrogen container has good insulation, integrated molding, small welding seam, sturdy and reliable, ensuring the prevention of vacuum leakage. It is equipped with 6 buckets for biological sample storage. The buckets are suitable for small amounts of liquid nitrogen extraction or storage items. This product has passed ISO / CE certification, and all products have passed the performance tests of the Product Quality Supervision and Inspection Institute.

Parameter

Model:YDS-15

Volume(L):16

Caliber(MM):50

O.D(MM):394

Height(MM):593

Static Storage(D):150

Net Weight(KG):8.2

Gross Weight(KG):11.5

Static Power Dissipation(Kg/d):0.09

Packing Size:(CM):41*41*63

Liquid nitrogen tank features:

1) Made of imported high-quality anti-rust aluminum alloy, the product is light in weight.

2) The product's inner and outer shells are formed using spinning technology, with fewer welds and a guaranteed vacuum leak rate;

3) Numbered lifter for easy identification and independent access to biological samples;

4) High vacuum multilayer insulation design is adopted, which has good low temperature insulation performance. Provides a vacuum guarantee of no less than 5 years.

Liquid nitrogen container for safe transportation

The liquid nitrogen container must be installed in the wooden frame to be cushioned and fixed during transportation. The tanks should be separated from the tanks with a filler to prevent bumps and prevent dumping.

When loading and unloading trucks, the liquid nitrogen containers should be strictly prevented from colliding, and they must not be dragged on the ground to avoid reducing the service life of liquid nitrogen containers.
