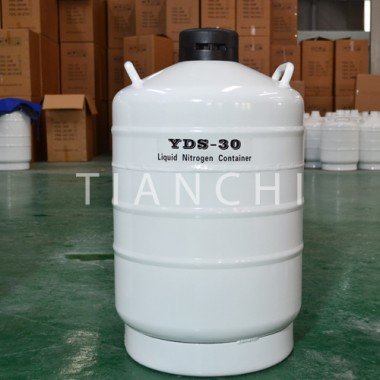

Tianchi small liquid nitrogen dewar companies

Tianchi is a manufacturer of liquid nitrogen tanks integrating design, research and development, production and sales. It adheres to the business philosophy of “focus, innovation, cooperation and development”. The liquid nitrogen tank produced by the company has excellent quality and low price, liquid nitrogen. Long save time.

Parameter

Model:YDS-2-35

Volume(L):2.8

Caliber(MM):35

O.D(MM):224

Height(MM):420

Static Storage(D):35

Net Weight(KG):2.3

Gross Weight(KG):4.2

Static Power Dissipation(Kg/d):0.06

Packing Size:(CM):24*24*53

Note on the use of liquid nitrogen container:

(1) liquid nitrogen container cleaning: first wash with neutral detergent, then rinse with warm water not higher than 50 °C. After washing, the liner should be dried (preferably hot air, the temperature is not higher than 50 ° C) and cooled to room temperature, then filled with liquid nitrogen.

(2) The container vacuum sealing joint cannot be opened without authorization.

(3) The storage container cannot be used as a transport tank when filled with liquid nitrogen or with frozen articles.

(4) liquid nitrogen containers should be placed in a cool, ventilated and dry environment when not in use; during long-term storage, it should be noted that the surface of the liquid and the outer surface of the chamber are regularly checked for condensed water and frost.

Liquid nitrogen tank accessories:

Lock cover: It consists of a flip cover and a base. The lock is locked on the base, which is convenient for users to lock and protect the safety of stored samples.

Neck plug: Made of polyurethane with good thermal insulation, it is used to close the mouth of the tank to reduce evaporation of liquid nitrogen.

Protective cover: It is made of fiber with high thermal insulation effect, which has the function of thermal insulation and protection of the tank from damage.

Bucket: It is used to store items, samples, cells, animals, etc. that need to be frozen or refrigerated. There are two kinds of holes in the bottom and no holes.
